Product Introduction
The Linear Cross Belt Sorter is an advanced sorting system that uses motorized cross-belt conveyors arranged in a straight line to transport and sort products efficiently. Items are moved along individual belts and are diverted to specific chutes or conveyors using automated mechanisms like pushers or gates. It is designed for high-speed, high-accuracy sorting of various product types, including parcels, boxes, and irregularly shaped items. Commonly used in e-commerce, logistics, and retail distribution, the Linear Cross Belt Sorter offers high throughput, reduces manual labor, and ensures reliable, precise sorting, making it ideal for large-scale sorting operations.
Parameter
| Product name | Cross belt sorter |
| Number of slots | 180 (can be customized) |
| Grid width | 750mm |
| Number of cars | Customized according to needs |
| Car size | 428*700mm |
| Main line speed | 2.0m/s |
| Supply table speed | 21600 single/hour(12 people in two zones for package) |
| Line height | 1.9m (can be customized) |
| Package weight range | 0.1-10kg |
| Package size (Minimum) | L100mm*W100mm*H10mm |
| Package size (Maximum) | L400mm*W400mm*H350mm |
| Sorting time limit | Actual 18000-21000, theoretical 40000 orders/ hours |
| Running speed | 2.5m/s max |
| Sorting capacity | 12000pph for one side, 24000pph for two side |
| Capacity for each induction | >2000pph |
| Carrier size | 500*700mm, 600*700mm,800*1100mm, customized |
| Load capacity | 0.01-35kg |
| Dimension for package | 100*100*1-600*1000*250mm per the dimension of carriers |
| Sorting error | ≤0.01% |
| Bar-code reading | >99% |
| Noise | <72BD |
| Package | Envelope, plastic bag, carton, etc. suitable for kinds of package. |

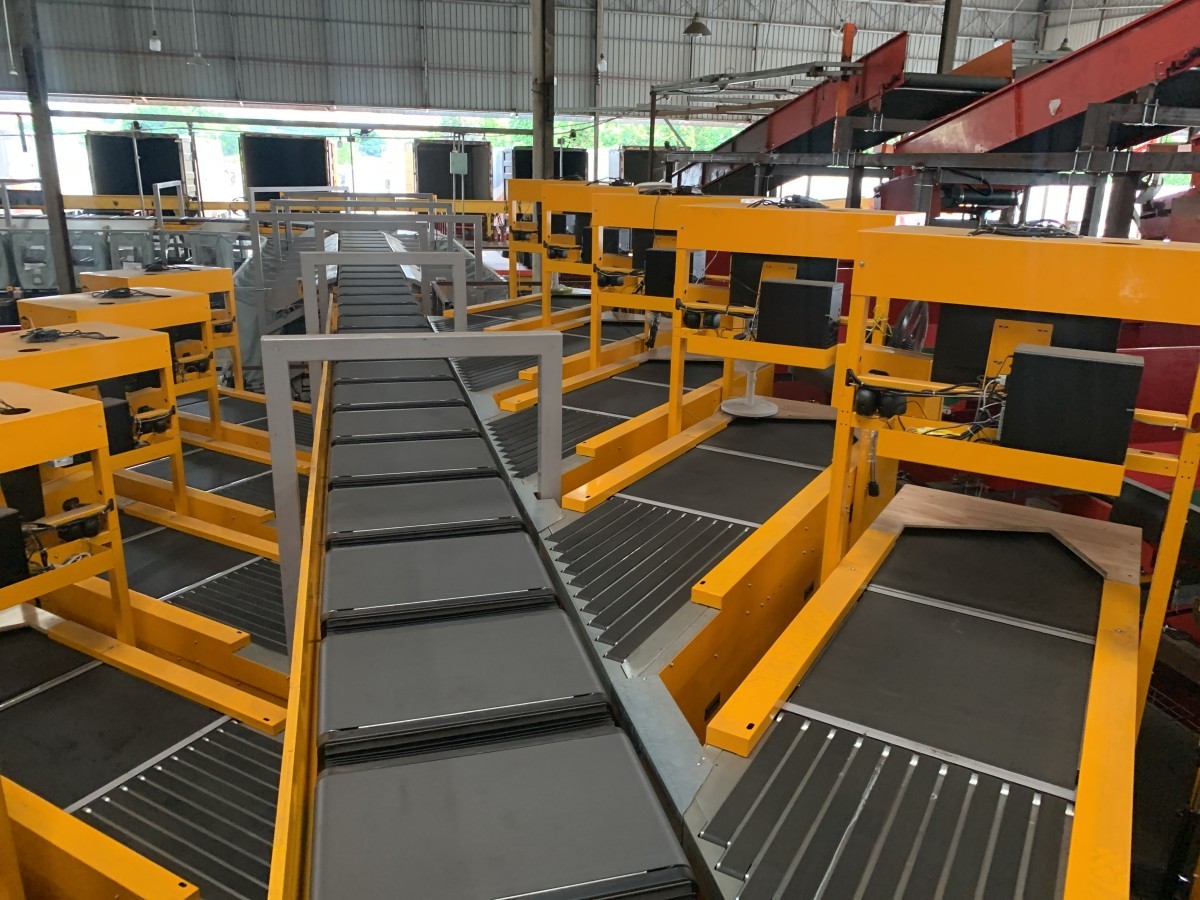

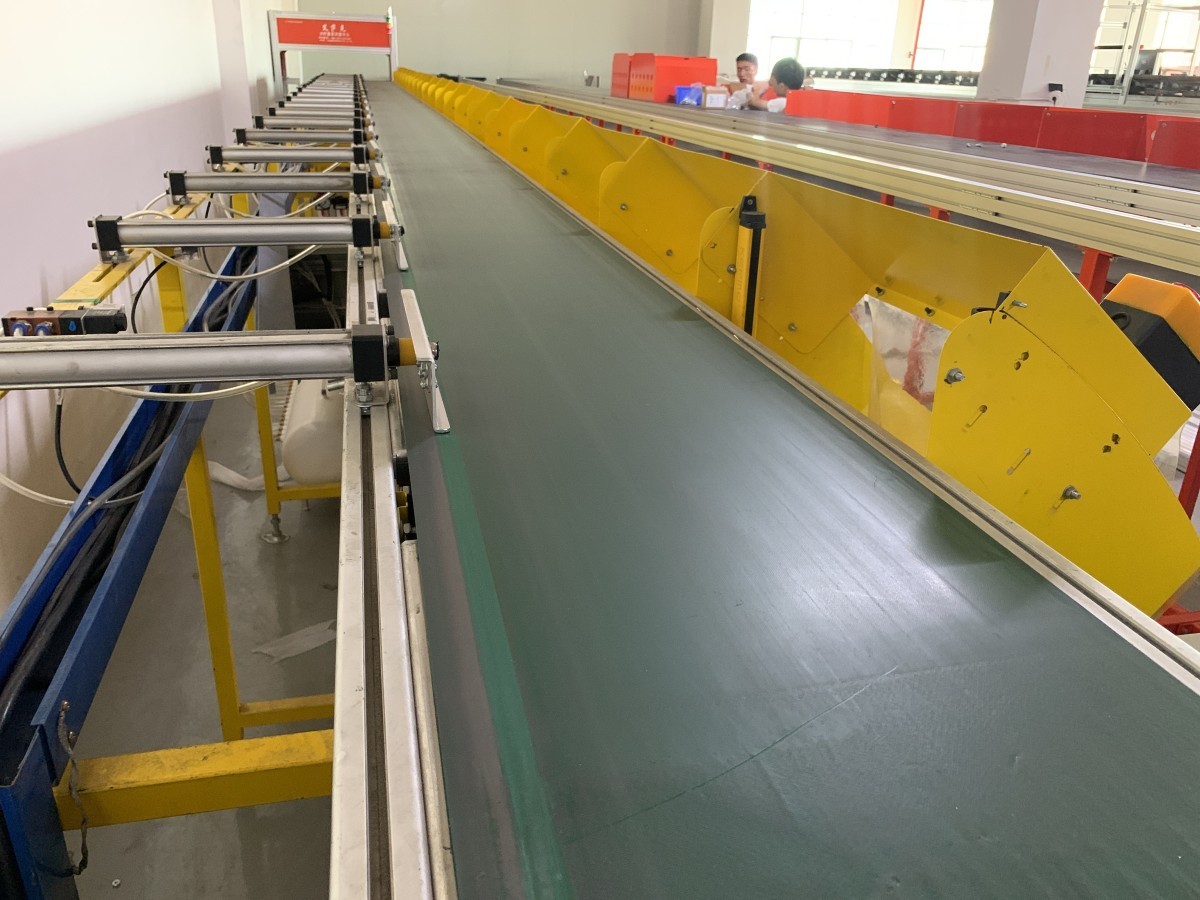

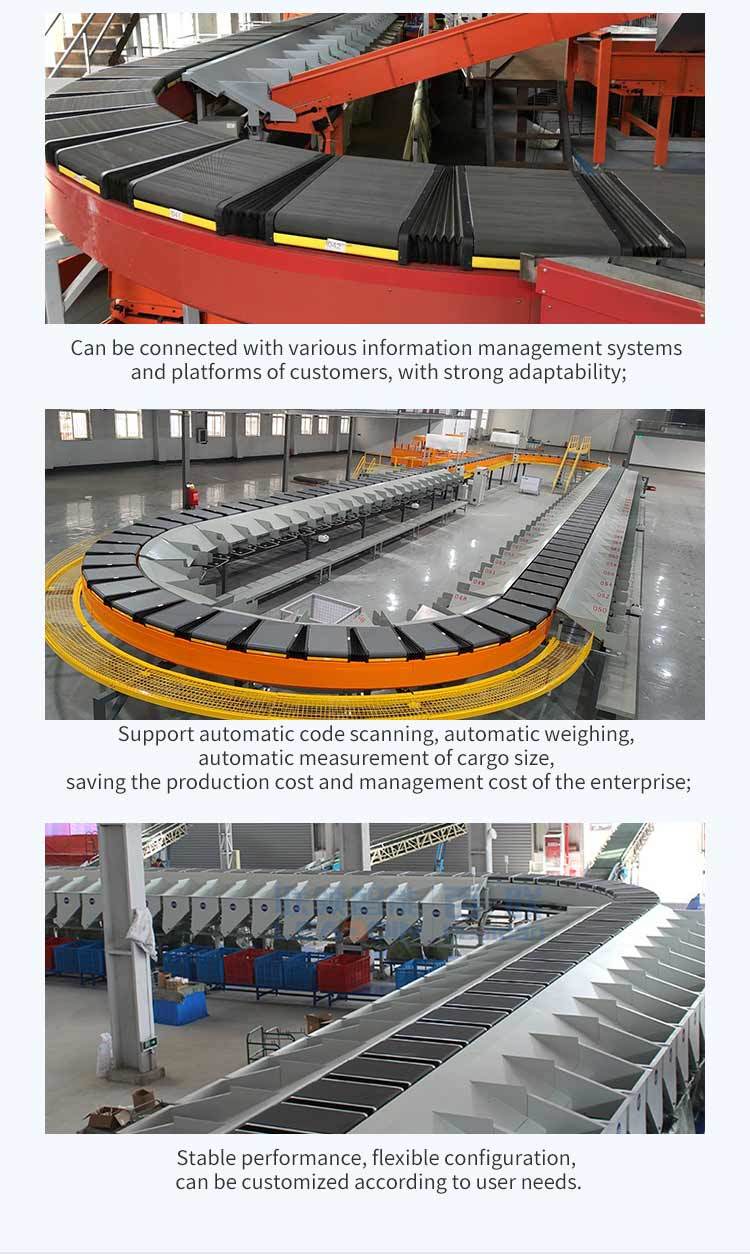

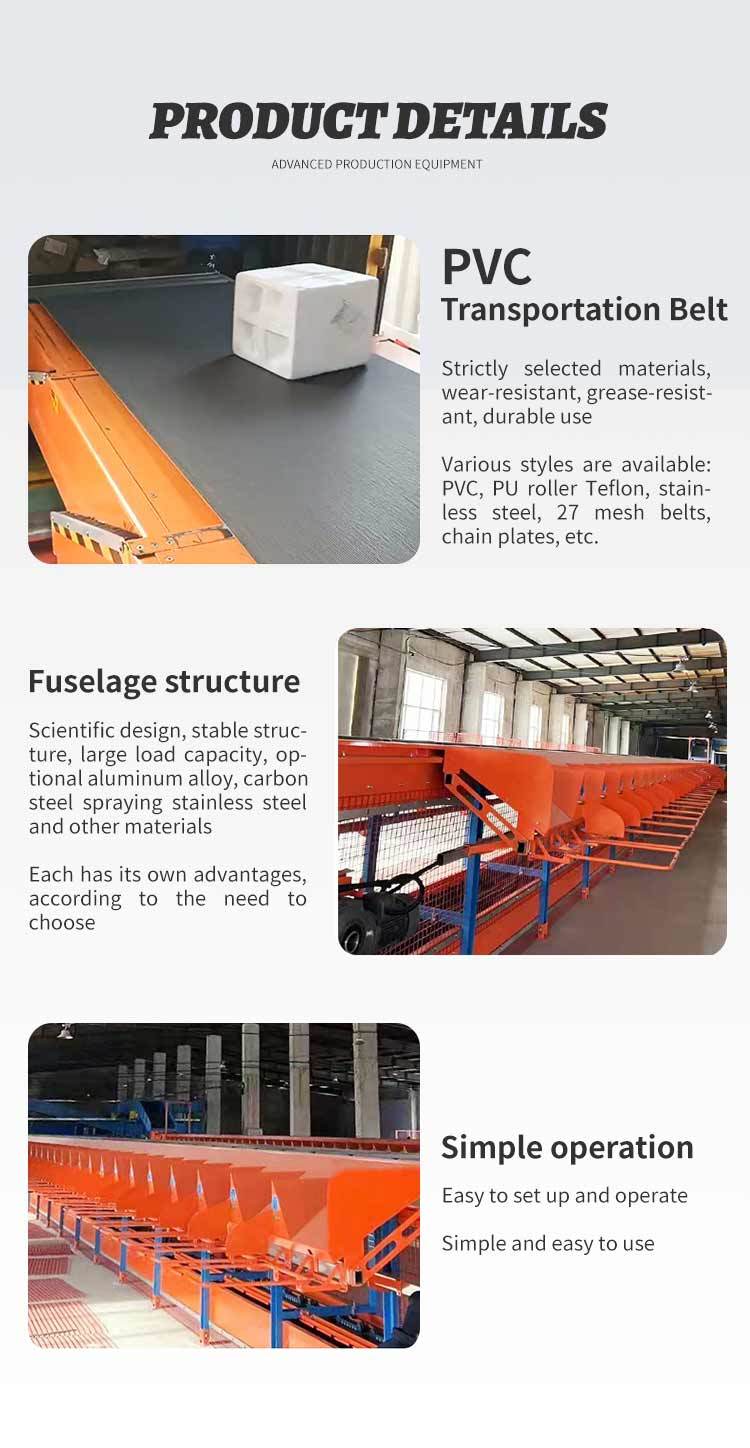

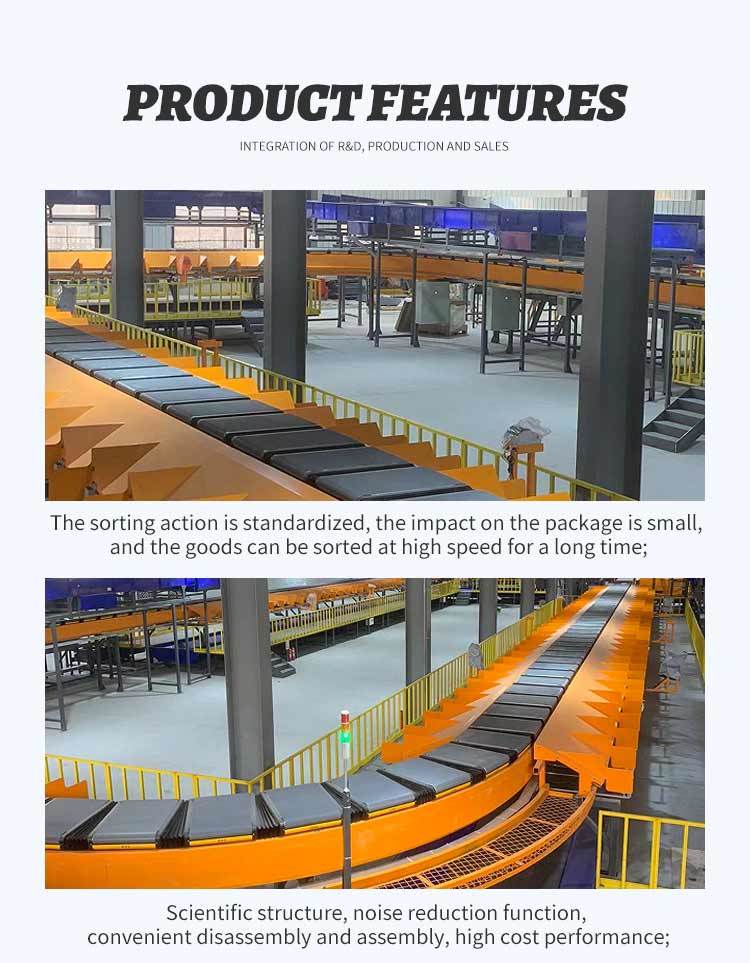

Details Show

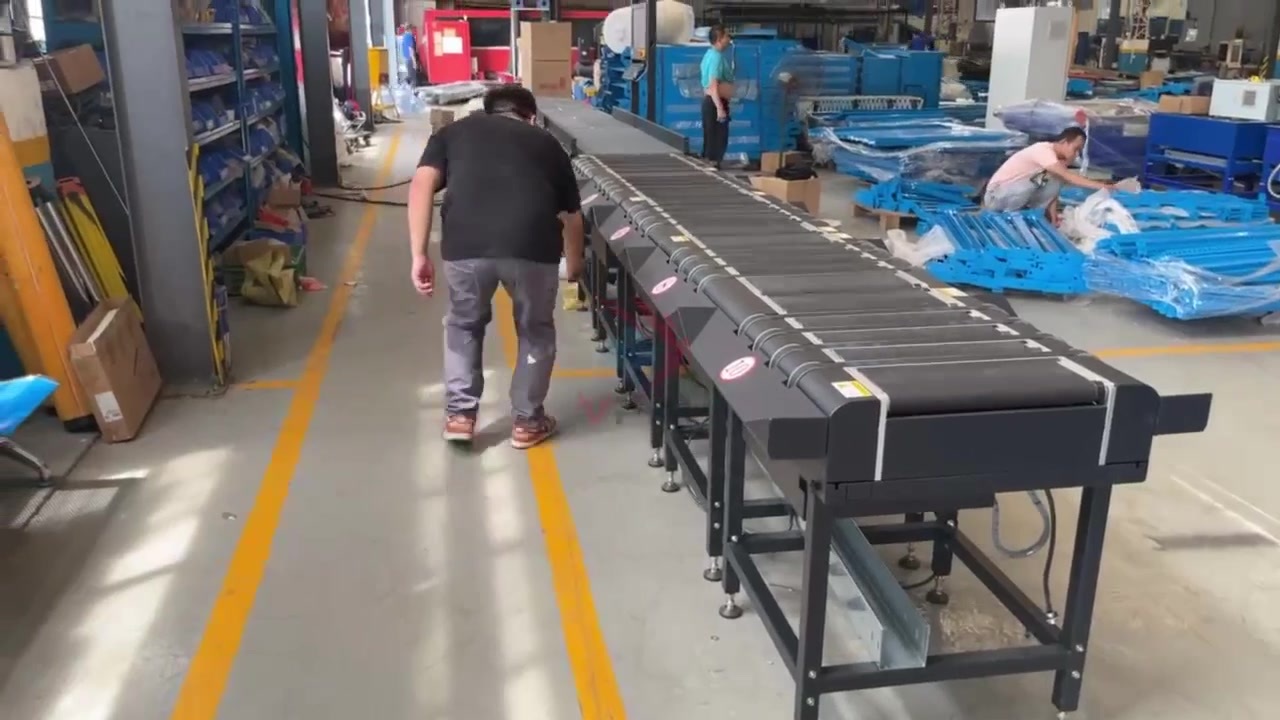

Product Video
Details Show
Adhering to the business principle of mutual benefits, we have had a reliable reputation among our customers because of our professional services, quality products and competitive prices.
OUR EXHIBITION
We welcome customers at home and abroad to visit our factory to reach long-term cooperation and create success together.
Customer Feedback
We welcome customers at home and abroad to visit our factory to reach long-term cooperation and create success together.
Certificate
We welcome customers at home and abroad to visit our factory to reach long-term cooperation and create success together.
FAQ
Q1. What is your payment term?
A1: Payment terms is T/T or other reasonable payment is acceptable.
Q2. How many days of the lead time for standard machine?
A2: We have stock or 2 working days.
Q3.Custom made service is available?
A3:Yes,we can customize all the machines.
Q4. Can you help us contact the shipping agent in your loading port?
A4: Yes, we have forwarders who always provide us with the best service and prices.
Q5: How to fix the problem if the equipment fails in working?
A5: Take a video to us first,we can guide you to handle the problem by video. we can also provide new spare parts if necessary.
Q6: How long time of your warranty period?
A6: Standard is 12months,but we also can giving 24months(2years) if there are specification situation.
